The SKA and Radio Astronomy

We take a tour of the Australian precursors to the Square Kilometre Array, and find out how new sensors will improve observations in future.
04 April 2013
Presented by Chris Smith, Dominic Ford


We take a tour of the two Australian precursors to the Square Kilometre Array - the Murchison Wide Field Array and the Australian SKA Pathfinder - to discover how big radio astronomy projects will see the universe in a new light. Plus, how understanding the physics of radio detectors helps us make better telescopes...

In this episode

A child sleeping

01:14 - Can computers read our dreams?

The content of dreams can be decoded and visualised with a brain scanner...

Can computers read our dreams?

Scientists have developed the first system which is able to predict what objects are appearing in peoples' dreams.

The team, led by Tomoyasu A child sleepingHorikawa of the ATR Computational Neuroscience Laboratory in Kyoto, Japan, worked with three volunteers, who were invited to try to sleep while lying in a Functional MRI scanner.

Such scanners are able to map out which areas of a subject's brain are active, by monitoring the flow of oxygenated blood around the brain.

The research team fed the brain activity patterns into a computerised pattern-recognition system which searched for correlations between activity in particular brain areas, and reports that the subjects were dreaming about particular subjects.

A stumbling block for similar studies in the past has been that dreams are, by definition, internal to the subject's mind. Naturally, it is impossible to hold a conversation with the subjects while they are asleep. This makes it difficult to know when they might be experiencing dreams, or what those dreams might be about.

The volunteers who took part in the study were woken from sleep more than 200 times over a ten day period and asked to recount what they were dreaming about. As well as being subjected to these repeatedly reawakenings -- roughly every six minutes -- they were also being asked to try to sleep whilst surrounded by noisy MRI scanning equipment, though headphones were apparently provided to reduce the noise that they were subjected to as much as possible.

The research team were particularly interested to see how comparable the patterns of brain activity were when their subjects saw particular visual images during wakefulness, versus when similar objects were encountered in dreams, with the aim of identifying where in the brain dreams originate. To make this comparison, the team used internet search engines to find images of the kinds of objects that their subjects often dreamed about, and mapped out the brain activity of the subjects when they were shown these images while awake.

The team found striking similarities between the brain activity recorded in the visual cortices of their subjects between visual experiences had during wakefulness and dreaming, suggesting that the brain's visual processing circuitry is active during dreaming. Of perhaps even greater interest, they also found that by the end of their study, they could predict what objects that were appearing in the dreams of the subjects in around a third of cases.

From this, they conclude that they are still a little way away from having a reliable way to evesdrop on people's dreams -- though one reason why their predictions may not have been more accurate is the verbal descriptions given by the subjects may not have reported all of the objects appearing in their dreams: cars are usually associated with street scenes, for example, but the street may have seemed too obvious to mention.

However, their work brings together two poorly understood areas of neuroscience: how the brain processes visual information, and what is happening within the brain during dreaming.

As lead author Tomoyasu Horikawa points out, the most interesting aspect of this is that the majority of dreams are not remembered; in the future, techniques like this may reveal what people have dreamed about through the course of the night, and how the brain is functioning during those dreams.


04:39 - Lithium Batteries Get a Sulphur Makeover

German scientists have designed a high-efficiency, low-cost lithium-sulphur battery...

Lithium Batteries Get a Sulphur Makeover

German scientists have designed a high-efficiency, low-cost lithium-sulphur Smart carbattery, which they believe will increase the use of electric vehicles in Germany and beyond.

Earlier this year, the UK government announced an £11M investment in public and private charging points for electric vehicles, which, its hoped will help increase the popularity of electric cars. At present though, the numbers are still small. According to Germany's Federal Ministry of Transport, there are over 40 million cars on the country's roads, but only a tiny fraction of them - around 6,400 - are powered by electrical energy.

The high price of both batteries and vehicles may be a factor in this low uptake, but a more real concern is the comparatively short range of electric cars - their lithium-ion batteries need to be recharged after just 100 km of driving. But a team at the Fraunhofer Institute in Dresden have developed a new lithium-sulphur battery, which is significantly more powerful and less expensive than the standard Li-ion batteries.

Previously, lithium-sulphur batteries have had such short lifetimes (just 200 charge-discharge cycles) that they've been unsuitable for use in cars, but the team's new design increases the lifetime of lithium-sulphur batteries by a factor of seven. They have done this by altering the standard combination of anode and cathode material in a lithium battery. The interaction between these electrodes and the liquid electrolyte between them is the critical factor in determining a battery's performance.

The team, led by Dr. Holger Althues, replaced the usual lithium anode with one made from a silicon- carbon compound, which is much more stable during the charge-discharge cycle. This improved stability reduces the risk of unwanted interactions between the anode and the electrolyte, which, in extreme conditions can lead to a fatal short circuit within the battery. In lithium-ion batteries, the main cathode material is cobalt, a rare, and therefore expensive, material. The Fraunhofer team have replaced the cobalt with elemental sulphur, greatly reducing the cost of the battery. And they have introduced porous carbon into the electrode, which traps the sulphur within the pores, slowing down interactions between the sulphur cathode and the electrolyte.

Suitable large-scale manufacturing methods for these Li-S batteries are now under review, but Althues has also shown that, with further optimisation, the energy density of their lithium-sulphur battery can reach 500 Wh/kg - more than double that of the lithium-ion batteries currently in use in electric cars - meaning that for the same weight of battery, you could drive double the distance.

X-ray diffraction pattern of crystallized 3Clpro, a SARS protease. (2.1 Angstrom resolution).

07:51 - X-Ray Crystallography without Crystals

X-ray crystallography can now be carried out without crystals...

X-Ray Crystallography without Crystals

A way to conduct X-ray diffraction studies to understand the structure of materials, but without first needing to make crystals of the chemical, has been discovered by scientists in Japan.

X-ray diffraction is arguably the most powerful way chemists have of looking at the structure of molecules. Rosalind Franklin's x-ray data helped James Watson and Francis Crick crack the structure of DNA; X-Ray diffractionDorothy Hodgkin used x-rays to see how the atoms are arranged in penicillin and vitamin B12; and the 2013 Nobel prize in chemistry went to researchers studying he structure of proteins using crystallography.

But all of these studies require crystals, and not all molecules will crystallise -  lots of interesting organic molecules, for example, are liquids or sticky gums. But Yasuhide Inokuma and his team at the University of Tokyo have come up with a way round the problem.

They use a molecular sponge to soak up the molecules and hold them in an ordered array. The sponge, or metal organic framework, is made from metal ions joined together in an ordered, porous structure by organic linkers. The molecules being studied all bind to the sponge in the same orientation - similar to how they might pack together in a crystal - which is crucial for x-ray analysis.

The technique only requires a tiny amount of material as well - less than 0.1 microgram. That could make it useful for analysing things like molecules extracted from plants or marine sources, which are often starting points for discovering new drugs, but are usually only produced in vanishingly small quantities.

Man asleep on the Tokyo Subway

11:16 - New drug knocks insomnia on the head

A new class of anti-insomnia drugs free from hangover effects are showing promise in rat and monkey tests...

New drug knocks insomnia on the head

sleeping commuterA new drug that can overcome insomnia without leaving users feeling hungover the following day is being tested in the US.

Although the average doctor's medicine bag is full of drugs capable of sending patients off to sleep, such as diazepam a widely-used benzodiazepine, these agents invariably have serious side effects, including dependency and ensuing daytime difficulties with memory and cognition.

This occurs because, as well as activating sleep-inducing circuits in the brain, these agents also suppress the activity of nerve cells responsible for learning, memory and attention.

And because, by necessity, the drugs need to have a long duration of action to ensure that, once asleep, the patient remains that way, these other unwanted effects spill-over into the following day's activities, impairing performance.

But now scientists have uncovered a class of agent that can trigger sleep exclusively, without hampering other brain activities. Known as DORA-22, short for "dual orexin receptor antagonist", the new agent was first synthesised last year by scientists at the pharmaceutical company Merck, who have now begun testing the drug, with promising results, on rats and monkeys.

Writing in Science Translational Medicine, Merck researcher Jason Uslaner and his colleagues have compared the effects on memory, attention and sleep of DORA-22 and the existing sedative agents diazepam, eszopiclone and zolpidem.

Rats given the latter drugs were significantly impaired in recall tests and monkeys had poorer working memory and attention. In both animals these side effects occurred at doses much lower than those required to affect sleep. But administration of DORA-22 induced increased sleep at doses 30 times lower than those needed to produce any similar changes in learning, memory or attentional abilities.

DORA-22 blocks the action of two nerve signals called orexins, which were discovered in the late 1990s as potent and discrete "wake-up" signals in the brain.

They are produced by a relatively small number of nerve cells located in a discrete part of the brain's hypothalamus where they connect almost exclusively to other sleep-related brain regions. Consequently, they are an ideal target for therapeutic intervention and on this basis the Merck scientists recommend taking the research forward to assess whether human insomniacs will benefit...

A PET scan, illustrating of Schizophrenia's effect on the brain

13:54 - Obama's brain science funding

Obama announces $100 million to map the brain - but is this enough to fulfill this lofty dream?

Obama's brain science funding

Dominic -   Neuroscience stories seem to be a theme this week as last Tuesday, President Obama announced the brain initiative which offers $100 million of federal funding to map, in detail, the working of individual parts of the human brain.  This will obviously provide vital clues in treating diseases like Parkinson's and Alzheimer's.  David, Why do you think this wave of funding is coming now for these kinds of conditions?

A PET scan, illustrating of SchizophreniaDavid -   Well, it's a prescient topic at the moment, the idea of the aging population.  So, the increase in awareness for diseases like Alzheimer's and Parkinson's disease seems to be almost omnipresent.  We've got this idea that we need to plough a lot of resources into neuroscience funding so that we can find appropriate treatments for these diseases.

Chris -   Do you think $100 million - that's about £60 million.  Is that really very much?  The human genome project cost $2.5 billion and the Wellcome Trust in the UK, a major funding charity gives away £650 million a year.  Neuroscience is a big chunk of that admittedly, but $100 million does not sound like very much to do what they're trying to say they want to do.

David -   No, it's not a phenomenal amount of money and if you look at the original application for this project, it was originally a proposal that was $3 billion.  That's obviously been scaled back to $100 million proposal.  So, in the modern situation, research and technology is so expensive and consumables that you use in the laboratory are so expensive that that money doesn't necessarily translate into lots and lots of new drugs for us to use.

Phillip -   Yes, but it is extra money coming in from a source that wasn't there before, so I guess you could say that something is better than nothing.  I guess you've got to weigh up, comparing to say, the human genome project, how much do hardware is needed?  Can we do a lot of these things with existing techniques so we don't need to necessarily invent new technology?

David - I think the idea of raising awareness of neuroscience research is also a really key point here and I think if we can galvanise the youth of today to then enter neuroscience research and feel that this is something that people find as very important, that that's only going to have a net positive effect.

Chris -   The one thing I'm still concerned about there is the sustainability of this because shovelling in $100 million, it sounds great and it's led to a lot of headlines which is I'm sure, partly what they wanted to do - to inject some 'feel good' factor into US and international global research.  But at the same time, that's not very much money to do what they're aspiring to do.  It's one thing to start it.  It's another to keep these things sustained, isn't it?

David -   Yes, neuroscience research, like many other areas of research, requires dedication over long periods of time.  Sometimes these technologies take decades to go from a conception to the final product.  So, we really need to be looking at this over a much longer term.

Two mice; the mouse on the left has more fat stores than the mouse on the right.

17:05 - Weight loss Using Gut Bacteria

New research investigates whether gut bacteria changes following gastric bypass surgery can be transplanted into other patients...

Weight loss Using Gut Bacteria
with Dr Lee Kaplan, Massachussets General Hospital

Gastric bypass surgery, which reduces the capacity of the stomach, is now a regular weight loss option; but new research suggests that changes to gut bacteria which follow the surgery can be as effective as changing the stomach capacity itself.  Speaking with Chris Smith, Dr. Lee Kaplan of the Massachusetts General Hospital...

Chris -   Lee, what's actually involved in doing what we put in in inverted commas and dub a 'gastric bypass operation'?

Lee -   Well, you divide the stomach, meaning you cut the stomach so that there's a small pouch made out of the top part of the stomach and that's separated from the rest of the stomach.  And then you cut the bowel distally, further down, and you bring it up so that you're emptying that little pouch, that little stomach pouch, directly into the small bowel.  So, the food flows through the oesophagus - the swallowing tube - into the small gastric pouch and directly into the middle part of the small bowel, bypassing the rest of the stomach and the first part of the small bowel.  And in doing so, it was always thought that what you were doing was preventing people either from eating or absorbing what they ate and now, we know that actually that's not the case.

Chris -   So critically, the stomach, the residuum of the stomach is left there in situ and the part of the small bowel, the duodenum of the stomach connected to it is still there.  It's just that food is bypassing those two anatomical structures and going straight into a part of the small bowel, a bit downstream of there.

Lee -   Exactly and even though those portions are not seeing food anymore, they seem to be very actively involved in the effects of the bypass.  If you simply cut out the stomach, you wouldn't see as much of an effect as you do when you separate the stomach and leave both parts intact or both parts in the body.  So, the part that's not seeing food is now sending some kind of a signal to the rest of the body.  "You know what?  I think we need to sort of change the balance of energy here".

Chris -   And when people undergo this procedure, roughly, how much weight can they lose?

Lee -   Well, the average is you'll lose about 2/3 of the excess weight.  The weight above what normal would be and there's quite a bit of variation.  Some people lose only half that much weight.  Some people lose more than that much weight, but on average, it's a highly effective intervention.  Much more effective than anything else we've got so far.

Chris -   So, what was your hypothesis when you came at this study?

Lee -   Well, some years ago, workers in Jeff Gordon's laboratory in St. Louis, Missouri had found that the microbiota correlates with whether an animal has, or a human being has, obesity or is thin.  And further, they showed that if you take the microbiota, the bacteria that live in our bowels from an animal that is fat and you give it to an animal that doesn't have a microbiota, a sterile animal that was grown specially, that animal will gain more weight than if you do the same kind of transfer from an animal that was lean.  So, we knew from those experiments that the microbiota was involved in some way in regulating energy balance, body weight, body fat, metabolic function.  So we ask the question:  Could the gastric bypass be working by changing the total population of bacteria that are in the microbiota?  That was the premise and of course, the answer was, yes, we could.

Chris -   So, how did you actually do that?

Lee -   First, we asked the question of, how does the microbiota change in response to the bypass and are those changes really from the bypass or are they from the weight loss that the bypass causes?  And what we found was that there's a difference in the microbiota between thin animals and fat animals.  So, there's difference in the balance of different types of bacteria, but that after a gastric bypass, you actually change it even more so that you get to a third type or a specialised gastric bypass type of microbiota.  And that change occurs with the gastric bypass, but does not occur when you lose weight by dieting the animals.  So that's specific to a bypass.  We then took the microbiota from an animal that had gotten a bypass, this changed microbiota, and we put it into another one of these sterile groups, animals with sterile gut.  We found that when we did that, those animals lost weight.  And again, that effect was specific to the microbiota after gastric bypass because when we did the exact same transfer from an animal that became thin because we put it on a diet, it did not have the same effect in their recipient animal.  So, there's something about the microbiota from a bypassed animal that is able to cause a non-bypassed animal to lose weight.

Chris -   Do you know what's actually going on as a consequence of the operation to trigger that change in the bacterial population that then has this onward effects?

Lee -   Well, that's a great question and we don't really know the answer.  We have hypotheses that the changes in the structure of the gut cause a whole variety of signalling changes.  We think that bile acids which are secreted into the lumen of the gut play a role.  We think that the mucus layer of the gut, the mucus line, the wall of the bowel plays a role.  Just because of the nature of the changes of the bacteria, some of those bacteria that are favoured after bypass preferentially get their energy from that mucus layer.  But we don't really know the answer to that.  One thing that's important to note however is that the biggest changes that we saw in the microbiota were in the bottom end of the bowel, in the ileum and in the colon which is far removed from where the surgery was.  So of course, if you only had changes in the microbiota right where you operated, you might imagine it was some kind of a technical fluke.  But here, we're seeing that throughout the bowel, and actually many other parts of the body, the microbiota fundamentally change.  So this looks like a systemic effect but we don't yet understand why.

Chris -   The obvious aspiration is to be able to produce that effect without having to do that fairly dramatic and in many cases, life threatening surgery.

Lee -   Exactly.  I'm not a surgeon but I do take care of many patients who get the surgery.  It can be life threatening.  Although I have to say that it's a valuable intervention when used in the appropriate patients.  In the United States at least and it's actually less in the UK, but in the United States, only 1 in 400 patients with obesity get a gastric bypass.  So, rather than thinking about substituting something else for a gastric bypass, I'm much more interested in focusing on those 399 that are not receiving any effective therapy.  So, if we could harness the "magic source" of a gastric bypass without the bypass, we could perhaps apply it to some of those 399.

Chris -   Lee, thank you very much.  That's Dr. Lee Kaplan from Massachusetts General Hospital.

Gravity ocean map

24:05 - How do you weigh an ocean?

Oceanographers have come up with the unusual idea of weighing the global ocean at a single point to assess how big it is.

How do you weigh an ocean?
with Chris Hughes,National Oceanography Centre; Sue Nelson, Planet Earth Podcast

Chris Hughes - We know that the sea level is rising. It's been rising at about 3 millimetres per year for the last 20 years or so and we're Gravity ocean mappretty certain it's going to continue rising but there are lots of different estimates of how much. So over the 21st Century it might rise by half a metre, a metre, maybe even more. Whether it rises by a lot really depends on how much ice melts. The main source of water is the ice that is locked up in Greenland or in Antarctica which can melt and fill the ocean. But the other way it can rise is you don't have water, it's just the water that's already there expands to take up more space because it is warming up. So we want to be able to separate out the two different sources of sea level rise and in order to do that is for me to measure the mass of the ocean separately from its volume. The mass tells us how much ice is melting, water pouring off the continents, whereas the volume tells us about the density change as well so we need to separate the two out to understand what is happening.

Sue Nelson - So is this why you want to actually build an instrument or device that would in a conventional sense of the word, quite literally, weigh the ocean by going on the seabed on the seafloor?

Chris Hughes - Yes, that's right. It gave us quite a surprise to find that this might even be possible. When you look at the sea level problem altimetry has been brilliant because it has measured the entire ocean, so the satellite measures almost the whole world and we know because we're measuring everywhere that we're measuring the global picture. If you don't measure the global picture you don't get the total. The ocean sloshes around in a very complicated way and if you just measured it at one place you wouldn't see global sea level rise you would actually see mostly the sloshing or the local effects. So you need to do that global average. But it turns out when we look at what ocean models can tell us that when you look at the bottom of the ocean things get much quieter and especially in the tropics there's so little of this sloshing going on on long timescales but it gets so quiet that if you just measure the pressure you're not measuring the sloshing anymore you are just measuring the slow rise of the ocean as the ice melts.

Sue Nelson - If you're measuring the pressure down, a force down on an instrument on the sea floor, how will that though make a global average? You're going to get a different measurement on the other side of the world.

Chris Hughes - That's the surprising aspect of it. I think of it like a little bit like when you're filling the bath. If you turn the taps on and look near where the taps are you can't actually tell whether the bath is filling because there's so much splashing around going on, but if you look a long way away all the ripples are damped out and there's just a gradual creep of the level up the side of the bath. That's what we're doing here, we finding a place where all that splashing around isn't really influencing what we see. So all that's left is the global average.

Sue Nelson - Right then, let's get to the nitty gritty. What will this instrument consist of and how are you going to build it?

Chris Hughes - Well that's the challenge. The same technology has been used for about the last 40 years which consists of a quartz crystal and the resonance of that crystal, the resonance frequency depends on the pressure but these have a problem, they have got much better over the years but even so when you put them down in five kilometres of water they are still slowly crushed by the pressure so we can't measure these changes in pressure on the very long timescales we would like to. It's not super difficult. We're talking about one in ten million accuracy, so you want to be in five kilometres of water measuring a pressure change equivalent to about half a millimetre. That would be the level we would aim for.

Sue Nelson - How deep are we talking about you going? Several thousand metres I would imagine.

Chris Hughes - Yes, typically it will be three to five kilometres. You want to be away from the edges of the ocean, so somewhere in the middle and that's the usual depth.

Sue Nelson - So if you can't use these quartz crystals what else are you going to use?

Chris Hughes - That's where we're asking for ideas. One possibility is using something to do with electromagnetism with light. We know there are great ways of measuring things to enormous accuracy if you're using light so maybe we can do something to do with the refracting index of a fluid which will change according to its pressure. Maybe there is something to do with the speed of sound that we could measure or ideas have been floated about using something which changes phase.

Sue Nelson - So this is a science and engineering challenge as well.

Chris Hughes - Yes, that's what we're trying to do. We want to get engineers around the world who have just not thought of this as a problem to bring their expertise to bear and come up with innovative solutions. There have to be lots of things that we haven't thought of and we've been stuck with the same technologies, as I say, for 40 years. It's a really fundamental piece of physics; pressure is not a complicated variable. I'm sure there is someone out there who has a brilliant idea that would solve our problem. If we can get these message out so that people understand that there is a challenge and this is what we need I am sure someone, somewhere, has the idea that will solve our problem.

ASKAP antennas

29:12 - Astronomy with MRO and ASKAP

Kirsten Gottschalk and Dominic Ford investigate the science being undertaken with the SKA's precursor instruments...

Astronomy with MRO and ASKAP
with Kirsten Gottschalk, International Centre for Radio Astronomy Research

Chris -   The Square Kilometre Array is soon to be the world's largest and most sensitive radio telescope.  Located in a remote part of the Australian outback about 800 km north of Perth, two precursor instruments, the Murchison Radio-Astronomy Observatory and the Australian Square Kilometre Array Pathfinder have already been built on the site.  Kirsten Gottschalk from the International Centre for Radio-Astronomy research set out on an expedition to see the site from Perth with some of the engineers who work there.

The Murchison Widefield ArrayKirsten -   We're just packing up the vehicle now, ready to head out on our trip.  We've got 8 or 8.5 hours in the car today, up to the Murchison Radio-Astronomy Observatory.  Our destination for this evening is Boolardy Station where we'll be staying and then we'll get to head out to the MRO tomorrow morning.  But at the moment, our first stop is going to be Bindoon Bakery for some breakfast.  We've got about 600 km of tarmac ahead of us and then another 200 of red dirt road...

Dominic -   The Square Kilometre Array or SKA is an international project which will be split between Southern Africa and Australia.  Centred around the Karoo Desert in South Africa, an array of radio dishes will be built which will stretch over distances of thousands of kilometres into neighbouring countries.  In Australia meanwhile, the Murchison site will be at the centre of a second array of radio antennas, also spread over distances of thousands of kilometres which will utilise a new kind of radio receiver called aperture arrays.  It's only in these remote and mostly uninhabited locations that radio astronomers can get away from the noise of mobile phones, Wi-Fi networks and television masts to be able to detect the faint radio signals that they're looking for.  Together, the SKA's two arrays will form an instrument which will be around 10,000 times more sensitive than the current generation of radio telescopes and will allow images to be taken of the faintest and most distant galaxies ever observed.  By looking at distant objects whose light has taken billions of years to cross the universe to reach us, it will be able to look back in time.  The astronomers building the telescope hope that it will be able to look back so far in time that it will be able to see the first galaxies forming out of the smooth structureless sea of gas that was produced by the Big Bang.

Kirsten -   It's now about 2pm and we're still on the road.  We just left Morawa where we had lunch by the side of the road.  We're now driving along a very straight road with some beautiful blue skies ahead of us with some little wispy clouds around.  It's about 30 degrees, and as we're heading further north, we're getting progressively warmer.  The fields around us are nice and brown and dry, and we're about to be passed by a road train with some ore.  The road here is actually only single lane tarmac so you have to go out onto the dirt to get passed and then all the dust comes in that's not as pleasant as it could be.  A three carriage road train just passed us and now, another one's coming back in the other direction that has four carriages.  These trucks are huge!

Dominic -   The SKA won't just be looking at very distant objects. Within our own Milky Way galaxy it will expect to discover thousands of pulsars, the fast rotating remnants of dead stars which emit beams of radio radiation from their magnetic pulse and appear as radio sources which pulse on and off on each revolution, often hundreds of times a second.  If two of these objects can be found in close orbit around one another, the way in which they move in each other's intense gravitational field will allow the SKA to put Einstein's theory of general relativity to the test.

Kirsten - So, we just tend onto the road into the Murchison Radio-Astronomy Observatory and we're driving along and we're going to get a glimpse of a telescope soon, I think, in the distance.  I think as we round this corner, we might be able to see a dish.  Oh, we see one.

Passenger -   Where?

Kirsten -   Up there on the left.  It looks tiny from a distance, doesn't it?  So, we've just pulled up to the gate.  We're going to say hello to Martin, one of the MWA astronomers and engineers who's opening the gate for us.  Thanks, Martin.

Passenger -   Thank you.

Kirsten -   And we're going to pull through and talk to Brian...

Brian -   You guys saw the Bungarra [large lizard] on the drive in but there's another one just a couple of hundred metres ahead near that net on the right hand side.

Goanna (Bungarra) photographed on a limestone track near Boranup Beach Western Australia.Kirsten -   Alright.  We're being told to watch out for a Bungarra up on the right.  We'll meet you at the Murchison Widefield Array...

Dominic -   Though construction of the SKA is still 3 years away, the Murchison Radio-Astronomy Observatory is already home to two precursor telescopes.  Australia's National Science Agency CSIRO is building the Australian Pathfinder - ASKAP for short - on the site.  When it is completed, this will be an array of 36 radio dishes, each of which measures 12 metres across.  Nearby, the Murchison Widefield Array or MWA is a much less conspicuous instrument.  Rather than using dishes to reflect radio waves and focus them onto a receiver, it consists of tiny antennas, each measuring no more than a couple of feet across which are arranged in groups of 16 called tiles.

Kirsten -   Well, we've arrived on site.  We've put our lunch in the fridge and it's about 9:30 and I'd say it's already 30 degrees.  It's getting really warm out here and in our long pants and our long sleeve shirts and our boots for safety, we're getting a bit warm, but it's about time that we're headed over to the Australian SKA pathfinder to meet CSIRO.  They're going to show us around their new control building and the beautiful 36 white dishes that are popping up everywhere over there.  So, we'll head on over and we'll see what we can find out...

So, we've just turned back onto the road that goes straight down the middle of the MRO.  We've got a breakaway to our right.  Again, the MWA site is to our right and to our left is ASKAP.  We can't see any of it yet, but as we come up here and turn a bend, we should get a glimpse of the ASKAP core where there are about 11 or 12 of the 36 ASKAP dishes in a close area...  They really do look small from a distance.  It's not until you get close that you realise just how big they are.

Male -   Once you realise that the whole dish is actually sitting above the tree line as well...

Kirsten -   Yeah, it's absolutely amazing country out here.  It's flat as a pancake apart from the breakaways, but there's little bushes everywhere and a few trees that are maybe person height, but most of it is just flat red dirt which of course makes it absolutely perfect for radio astronomy.

One of the great things about radio astronomy in this region is that it is very low impact compared to other activities that happen in western Australia like other commercial activities.  So, with the Murchison Widefield Array, we have mesh on the ground where we have dipoles [radio antennae] clipped to the mesh and if you needed to take that telescope away, the ground would be relatively undisturbed and you could rehabilitate it quite effectively.  Same goes for ASKAP, you've got the central region where the roads are and where the dishes are built, but the rest of the landscape is untouched...

So, they're all pointing straight up at the moment, standing like sentries on the side of the road, we're now in the core region, so we're surrounded by ASKAP dishes in every direction...

We're now wondering around the core of ASKAP and this place is incredible.  These dishes are massive and we were lucky enough that one of the CSIRO workers just let us inside one to have a look inside.  There's so many cables and fibres, and digital chips.  It's such an interesting contrast to the fact that we're 8 hours from anywhere pretty much.  We're in the middle of a desert, in the middle of nowhere which of course is where we need to be to be doing this radio astronomy.

I'm looking up at one of the ASKAP dishes now and this big, bright green checkerboard circle above the dish, and that is what we call the phased array feed.  It's the brand new technology that CSIRO have invented and they are just absolutely incredible.  We first been told they have 188 different feeds.  So that means there's 188 different signals coming down off these dishes, allowing it to look at a broad section of sky.  Usually, radio telescopes only have one or maybe a few of these things, but these dishes have 188 of them.  Hopefully, it will feed into the Square Kilometre Array and beyond the Square Kilometre Array dishes.  But at the moment, they're building them for ASKAP.

Another really, really interesting thing about these dishes is that they don't just move up and down and left and right.  They also spin around completely which sounds kind of trivial, but then you're going to think that there are hundreds of cables coming out of the top of this dish and then you have to spin it around 360 degrees.  There's so much complex cable management inside these things.  In fact, you go inside and it's all just big racks of computing that takes in the analogue signal and then more computers that turn into a digital signal and hundreds and hundreds of cables being managed so that they can twist around and not to get tangled or stop the dish from turning where it needs to turn.

And now, we are so lucky - they are just tilting the dish towards me!  It's a 12-meter wide bowl with 4 arms coming off it that lead up to the phased array feed, the green checkerboard, with all the cables coming down off it.  It's actually quite funny watching someone using a remote control to tilt a telescope towards you...

You can hear/read more from Kirsten at the SKA Precursors here...

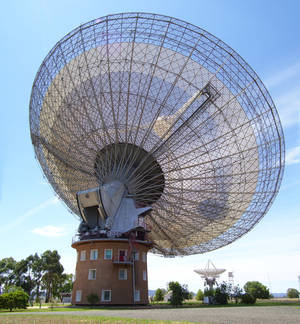

Parkes radio telescope viewed from the visitor's area.

39:48 - Developing Radio Telescope Receivers

PhD student Sarah Thompson discusses her work, researching the physics of radio telescope receivers...

Developing Radio Telescope Receivers
with Sarah Thompson, Cavendish Laboratory, Cambridge University

Chris -   The precursor telescopes to the Square Kilometre Array are pioneering new receivers to detect astronomical radio waves.  Earlier, Ben Valsler spoke to a PhD student called Sarah Thompson from the Cavendish Laboratory at Cambridge University about her research into the physics of receivers to see how detectors like those used on the MRO can be made as sensitive as possible.

Parkes radio telescope viewed from the visitorSarah -   My research is focused on a thing called Kinetic Inductance Detectors (KIDs).  These are superconducting detectors that would be used for cosmological or astrophysics observations from the ground or also in space.  They're a bit like cameras, but they're not really used for visible light.  They're more used for other wavelengths.  What I actually research on is we make these devices and we test them in the lab to see how they behave as you change certain elements of their environment.  The idea is that we'll get a better understanding of the physics of these devices and then you can make better devices.

Ben -   So, rather than building a new telescope, your research will enable us to build better telescopes in the future.

Sarah -   Exactly, yes.

Ben -   I know that I can pick up radio waves very easily using a bit of old coat hanger that's stuck in my radio.  So, what is a superconducting material and why do we need these materials with interesting properties?

Sarah -   A superconducting material is simply a material which has a temperature at which there's a sudden change in the material.  So above this temperature it acts as a conductor or even sometimes an insulator, but below that temperature the properties of the material change so that suddenly electricity flows through it with zero resistance.  Basically, in terms of building a device or a detector, you instantly get a lot less noise in the device.  Superconducting detectors tend to be a lot more sensitive than non-superconducting detectors and in a world in astrophysics where we want to be able to detect more and more distant galaxies and stars and with things like the cosmic microwave background radiation which is very old and has been traveling since the beginning of the universe, there's not much of that light coming to Earth.  So you're only talking about a very small amount of light and you need to have a very sensitive device to be able to pick up that light and give you an accurate image.

Ben -   With optical telescopes, of course, the way that we've done that is to get bigger, to get bigger mirrors, bigger lenses, larger areas to collect more light.  Is that the same in microwaves and in radio waves?  Are we just getting bigger?

Sarah -   Yes.  If you're talking about the total amount of light collected then a larger array will collect more light.  If you're talking about an individual pixel, that's one single detector and if you want to be able to capture a single photon on that single pixel then you need to make sure that a single photon will trigger a significant enough response from the detector that the signal will stand out clearly from the noise and the background of the detector.  So, not only do you need a large array to capture more total light, you need more sensitive detectors to be able to actually detect that light when it hits the array.

Ben -   So, we are talking about detecting radiation from the birth of the universe.

Sarah -   Yes.

Ben -   To me, I think that would need a very large bit of kit, but you've brought a few things in that are so small that you seem to need tweezers to actually look at them.  So, what is it that you've got here?

Sarah -   One of the main reasons for being interested in kinetic inductance detectors at all is they're very simple devices.  You can attach many of the devices to the same piece of readout equipment which is quite rare in superconducting detectors.  Often, you need a single readout piece of equipment per detector.  If you want to take a large image with high resolution, you need hundreds or thousands of pixels or even tens of thousands of pixels.  Now, that's tens of thousands of devices.  If each of those devices have their own piece of readout line, their own piece of readout equipment then the wiring, simply, the wiring by itself becomes an unmanageable task!  Now, there are lots of different ways of getting around this, but KIDs originally gathered interest because you can attach many of them to the same piece of readout equipment and the same readout line.  So technically, it should be very easy to make large arrays of these devices.  The reason that my devices require tweezers is because KIDs are very small.  They are on the order of millimetres so even a very large array of them is going to be very small.  Secondly of course, this is only a test device, so this doesn't have hundreds of thousands of KIDs.  This in fact only has 10 KIDs.  So, it's only about 8mm long and 3mm wide.

Ben -   Well, it looks like a piece of perfectly glass about a quarter of a size of a postage stamp.  So, that has got multiple receivers that can detect radiation from the birth of the universe.

Sarah -   Exactly, yes.

Ben -   That's quite astounding.  How does that actually work to pick up that radiation?

Sarah -   With the telescope, you have the aperture which actually sees the sky and then you'll have perhaps a series of lenses which will take the light that was collected by the telescope and focus it on one point called your focal plane.  Now at that point, that's where you put your detectors.  The KIDs themselves don't actually absorb light particularly well.  You have to attach them to an antenna or an absorber depending on which wavelength of light you want to look at and that absorbs the light and transmits it into the KID itself.  The KID itself is a really simple device.  It's called a microwave resonator.  It acts a bit like a notch filter.  So, if you look at it over range of frequencies, then what you'll see is an almost flat perfect transmission from the input to your output except at one particular frequency called the resonant frequency of the device.  At this frequency, all of the energy that you put in, what we call the probe signal, goes into the device, gets reflected back and never comes to the output.

So, when you actually want to read out from a KID array, what you do is you have a series of devices with different resonant frequencies so that your transmission across the entire range almost looks like zero.  But then if light hits one of your detectors, its electromagnetic properties change and all of a sudden, its transmission at that resonant frequency goes from zero to very high.  And that's how you know that you've detected something and how much the transition changes by and over what kind of timescale, that gives you information about how much energy the light had.

Chris -   Sarah Thompson who's completing her PhD at the Cavendish Laboratory at Cambridge University.

The Murchison Widefield Array is one of the precursors to the SKA

47:20 - Radio Astronomy in the Outback

Kirsten Gottschalk visits the future site of the Square Kilometer Array in the Australian outback...

Radio Astronomy in the Outback
with Kirsten Gottschalk, International Centre for Radio Astronomy Research

This follows on from our earlier report from Kirsten Gottschalk at the Murchison Radio-Astronomy Observatory site, you can hear/read the first part

The Murchison Widefield ArrayDominic -   The two precursor telescopes already at Murchison demonstrate two ways that radio astronomers can detect radio waves.  On the outside at least, the white dishes of ASKAP look much more like the traditional image of a radio telescope.  For high frequency radio waves, dishes remain the preferred option as receivers are expensive and it makes sense to use large dishes to focus the radio waves onto a small number of detectors.  But receivers for low frequency radio waves are cheap.  Rather than building huge and unwieldy metal structures to focus radio waves onto a small number of detectors, it makes sense to have many more smaller antennas.  This is especially true in a remote location like Murchison where keeping large moving structures in good repair is costly.  The MWA takes this idea to extreme, having over 2,000 tiny antennas called dipoles.  Each of which has no moving parts at all.

Kirsten -   After our fabulous morning at ASKAP this morning, we're now at the Murchison Widefield Array side of the site.  We've had a bit of lunch and some cake, and we've now headed out along the trench lines of the MWA to the core.  The configuration of the Murchison Widefield Array is quite similar to other radio telescope arrays in that you have a dense core with lots of antennas and then slowly, as you get further and further away from the core of the telescope, it gets more and more spread apart and the antennas are further apart.  So, at the moment, we're in the core of the Murchison Widefield Array.  It's about 500 metres away from the MWA Office.  Radiating out from that office are what we call trench lines.  Holes were dug in the ground to run cables along then filled in, so look very much like roads.  There are seven of them radiating out.

I turn around in every direction.  There's just little MWA dipoles as far as you can see almost and they're clumped into groups of 16, squares of 16 that we call tiles.  In one direction, I can see about 30 tiles that are all clumped together and then the rest of the MWA spreads further and further out, up to about 2 km from the centre.  We've got 128 tiles total in an area that's about 3 km square.  Each of these tiles, I walk up to it, it's got 5x5 metres of mesh in a big square, and then the dipoles are clipped onto there, the little antennas, and then they've all got cables running out of them that are hooked into this white box that sits off to the southern end of the tile.  That white box is called a beam former.  One of the special things about the Murchison Widefield Array is that it doesn't actually have any moving parts.  You can't point the telescope by moving a dish and pointing it to a certain section of the sky.  Instead, you point the dish electronically using a computer and that's where the beam former comes in.  It forms the beam on the sky!

What happens is, radio waves are coming into the telescope and each of the antennas is obviously in a different spot on the ground so the radio waves will come in to each of the antennas at a different time.  Then all of the information is sent through to the beam former and the beam former is told by the astronomer who wants to use the telescope where in the sky you want to look.  What it does is it adds a delay to each of the signals to combine the signals in such a way that you end up looking at the right spot of the sky.

Dominic -   Each of the MWA's antennas receives radio waves from all over the sky, but the telescope's control software can choose which direction to look in by introducing small delays into the signals in some of the tiles.  Radio waves from the east will arrive at the eastern most tiles first before sweeping westward across the array at the speed of light.

When it's completed, the SKA will produce a colossal amount of data.  Since the aperture arrays will comprise of so many small antennas, each receiving their own separate signals which will have to be added together, the total amount of data flowing into the control computers will be measured in thousands of terabytes per second.  This poses serious challenges for the engineers.  It means that the site is littered with buried optical fibres and it's quite impossible to carry all of the data that's flowing through them back to Perth.  Instead much of the computing power behind the SKA will need to be on site within a few hundred meters of the antennas themselves.  The whole point of locating SKA in the desert was to get away from the radio hum that electronic devices produce.  The engineers need to make sure that any radio waves the computers produce are kept away from the antennas.

 Kirsten -   The sky has still got hints of blue, but it's mostly got grey cloud cover.  We're expecting a little bit of rain tonight.  Of course, all of the telescopes are waterproof, but not just that.  They're also radio frequency proof because there's no point coming all the way out here and then building a big power station to power your telescope and building your receivers and your electronics that control the telescope because they will then produce radio waves.  So, everything in the MRO is shielded within an inch of its life, practically, to make sure that it doesn't produce any radio waves that could interfere with the telescopes.

This is particularly important for telescopes like ASKAP and the MWA because they are designed to be very, very sensitive.  The MWA is designed to pick up some of the oldest signals in the universe which will be extremely weak.  So, any kind of signal that's man-made and Earth based will drown those signals out.

So, we have things like the CSIRO control building that has two massive airlocks to get into it.  They're not to prevent air coming out, but instead to prevent radio frequency interference.  And I really like how they tested the building and made sure it was radio frequency tight:  They had a big signal generator inside the building and then were walking around with detectors and saying, "Okay, this weld needs a little bit more welding on it because it's letting some out."  And then basically made sure the building was completely tight and nothing could get out.  And the same has been done to all of the equipment over at MWA as well.

So we have these lovely white boxes sitting on the trench lines.  They're called receivers.  There are 16 of them, 8 tiles connect up to each of these receivers and they basically look like a white box with a fridge in it and then a whole lot of electronics.  And those electronics produce a lot of radio frequency interference so the white box itself shields them really, really strongly to make sure that the tiles are picking up nothing but signals from space.

Dominic -   The MWA and ASKAP are being used to test for new types of radio receivers that the SKA will use.  Placing them on a site which is very close to where the SKA will be built also tests whether that site is as good in practice as it looks on paper.  I have to say the first results that I've seen from both the Australian and South African sites are incredibly impressive.  In the absence of mobile phones and television transmitters, these are sites where the background noise becomes significantly worse whenever communication satellites were overhead.

Kirsten -   We've just left Boolardy.  Hitting the road, it's about quarter to 8:00 in the morning.  We're ready for our 8.5-hour journey home on the dirt and then the tarmac.  We're looking forward to getting back to Perth but we're sad to be leaving the Murchison...

Chris -   Thanks to Kirsten Gottschalk from the International Centre for Radio-astronomy Research and also to CSIRO for allowing us to record on the site and Curtin University who manage the MWA.

You can hear even more about radio astronomy, the SKA and its precursors from Kirsten and Dominic on the latest Naked Astronomy Podcast.

Comet Hale-Bopp as it flies over the sky of Pazin in Istria, Croatia

55:11 - How long does it take for comets to "melt"?

How long do comets last before melting away in the heat of the Sun? Will there ever come a time when all the comets are gone?

How long does it take for comets to "melt"?

We put this question to Katrin Ros, a researcher in Astrophysics at Lund University, Sweden...

Katrin - Comets are actually large clumps of ice and rock that were left over when the planets were formed. We can think of them as huge dirty snowballs orbiting the Sun. Being snowballs, this means that they can melt and they also actually do melt.

Every time a comet passes close to the Sun, part of its sublimates, meaning that the snow and ice turn directly into vapour and this is the vapour that we can see as one of the tails of the comet. So, since part of the comet sublimates every time it passes the sun, it cannot live forever.

For example, we have Haley's comet which is quite well-known since it passes the Sun once every 75 years or so, and this comet will be completely sublimated and disappear after only 10,000 years or about 100 rotations around the Sun. This is a typical lifetime for a comet. But still, this does actually not mean that there will come a day when all the comets are gone and that's because there are huge hidden supplies of comets waiting beyond the orbit of Neptune. That's the Kuiper belt and the Oort cloud. And these regions continuously replenish the inner Solar System with new comets.
